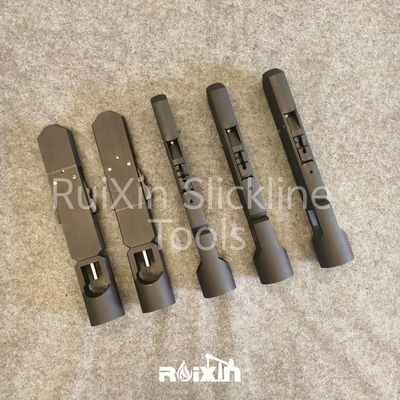

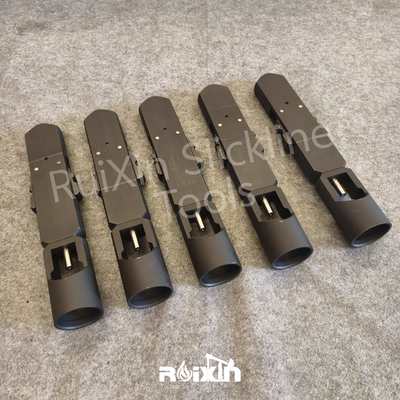

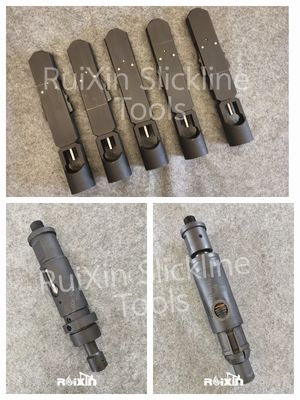

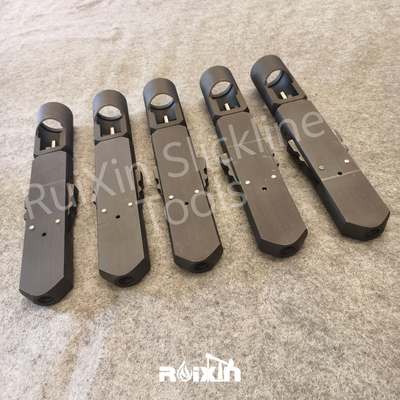

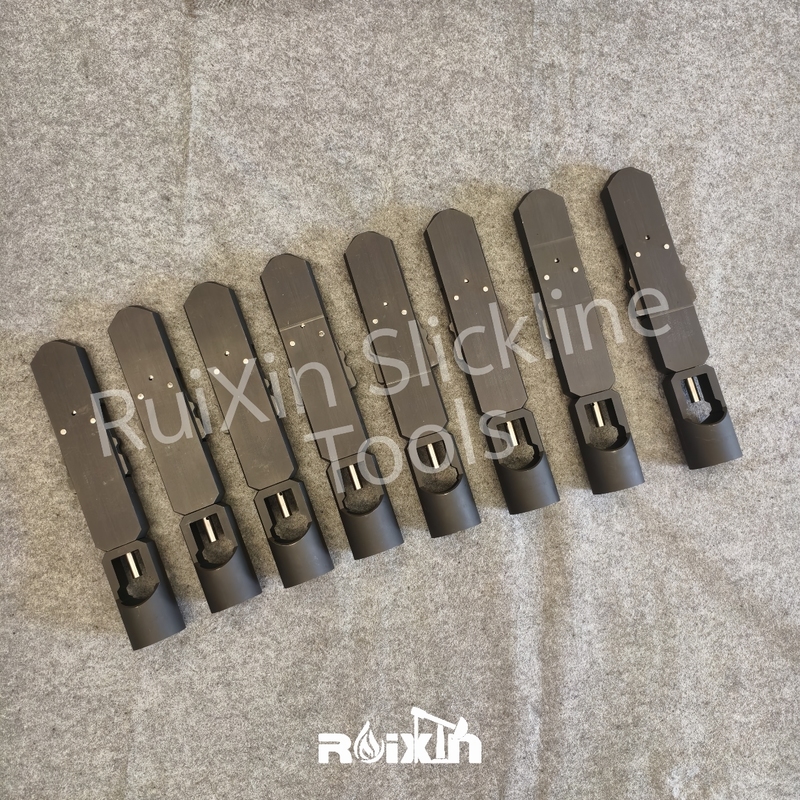

Softset Gauge Hanger 2.313Inch～2.75Inch Wireline Pressure Downhole Tools

Softset  Gauge Hanger  2.313Inch～2.75Inch Wireline Pressure  Downhole Tools

Introduction

The softset pressure gauge hanger mainly consists of an inner part, a neck, a top rod, a top rod spring, a spring seat, a locating pin, a locating claw, a connecting plate, a slider, a slider spring, a main body, steel balls, and steel pins, etc.

When descending into the well, the connecting plate will hold the positioning claws and retract them, creating a gap between the inner retrieval neck and the main body, and the steel ball will be in a free state. After reaching the preset position, the lifting tool is pulled up. Under the action of the lower slider and the slider spring, the positioning claws will pop open. Then, the tool string is lowered, and the steel ball will lock the inner retrieval neck in the slot of the main body.

Thes oftset pressure gauge hanger is used to place the pressure gauge in the work string for a long time. After being lowered to the preset position by the MR-specific running tool, it completes the kill operation without relying on the shock hammer to strike. It needs to be used in conjunction with the MR running tool and GS pulling tools for soft set bomb hanger.

Tools Can Be Manufactured To Any Size Required.

Technical parameters

Disassembly and Assembly

 1. Disassembly: Remove the pins on the body, pull out the connecting plate, and then remove the positioning claws; Loosen the positioning pins; Lower the push rod and remove the inner retrieval neck; Remove the remaining parts.

2. Assembly: Install the slider and slider spring at the lower part of the body; Install the positioning claws, connecting plate and pins; Insert the steel balls, push rod, push rod spring and spring seat into the body; Pull up the inner retrieval neck and insert the positioning pins.

 Note

1. During assembly, the threads must be lubricated;

2. Any external burrs or scratches on the parts should be smoothed with a file.
